Atrial fibrillation – a form of irregular heartbeat, or arrhythmia – leads to more than 454,000 hospitalizations and nearly 160,000 deaths in the United States each year. Globally, it is estimated that approximately 60 million people are affected by the condition.

Pacemakers are lifesaving devices that regulate the heartbeats of people with chronic heart diseases like atrial fibrillation and other forms of arrhythmia. However, pacemaker implantation is an invasive procedure, and the lifesaving pacing the devices provide can be extremely painful. Additionally, pacemakers can only be used to treat a few specific types of disease.

In a paper published October 26 in Science Advances, a team including Northwestern Engineering’s Igor Efimov details the workings of a wireless, battery-free pacemaker they designed that could be implanted with a less invasive procedure than currently possible and would cause patients less pain. The study was helmed by the University of Arizona-based researchers in the Gutruf Lab, led by Professor Philipp Gutruf.

Currently available pacemakers work by implanting one or two leads, or points of contact, into the heart with hooks or screws. If the sensors on these leads detect a dangerous irregularity, they send an electrical shock through the heart to reset the beat.

"All of the cells inside the heart get hit at one time, including the pain receptors, and that's what makes pacing or defibrillation painful," Gutruf said. "It affects the heart muscle as a whole."

The device the team has developed, which has not yet been tested in humans but lab-tested at Northwestern, would allow pacemakers to send much more targeted signals using a new digitally manufactured mesh design that encompasses the entire heart. The device uses light and a technique called optogenetics.

Optogenetics modifies cells, usually neurons, sensitive to light, then uses light to affect the behavior of those cells. This technique only targets cardiomyocytes, the cells of the muscle that trigger contraction and make up the beat of the heart. This precision will not only reduce pain for pacemaker patients by bypassing the heart's pain receptors, it will also allow the pacemaker to respond to different kinds of irregularities in more appropriate ways. For example, during atrial fibrillation, the upper and lower chambers of the heartbeat asynchronously, and a pacemaker's role is to get the two parts back in line.

"Whereas right now, we have to shock the whole heart to do this, these new devices can do much more precise targeting, making defibrillation both more effective and less painful," said Efimov, professor of biomedical engineering at the McCormick School of Engineering. "This technology could make life easier for patients all over the world, while also helping scientists and physicians learn more about how to monitor and treat the disease."

Flexible mesh encompasses the heart

To ensure the light signals can reach many different parts of the heart, the team created a design that involves encompassing the organ, rather than implanting leads that provide limited points of contact.

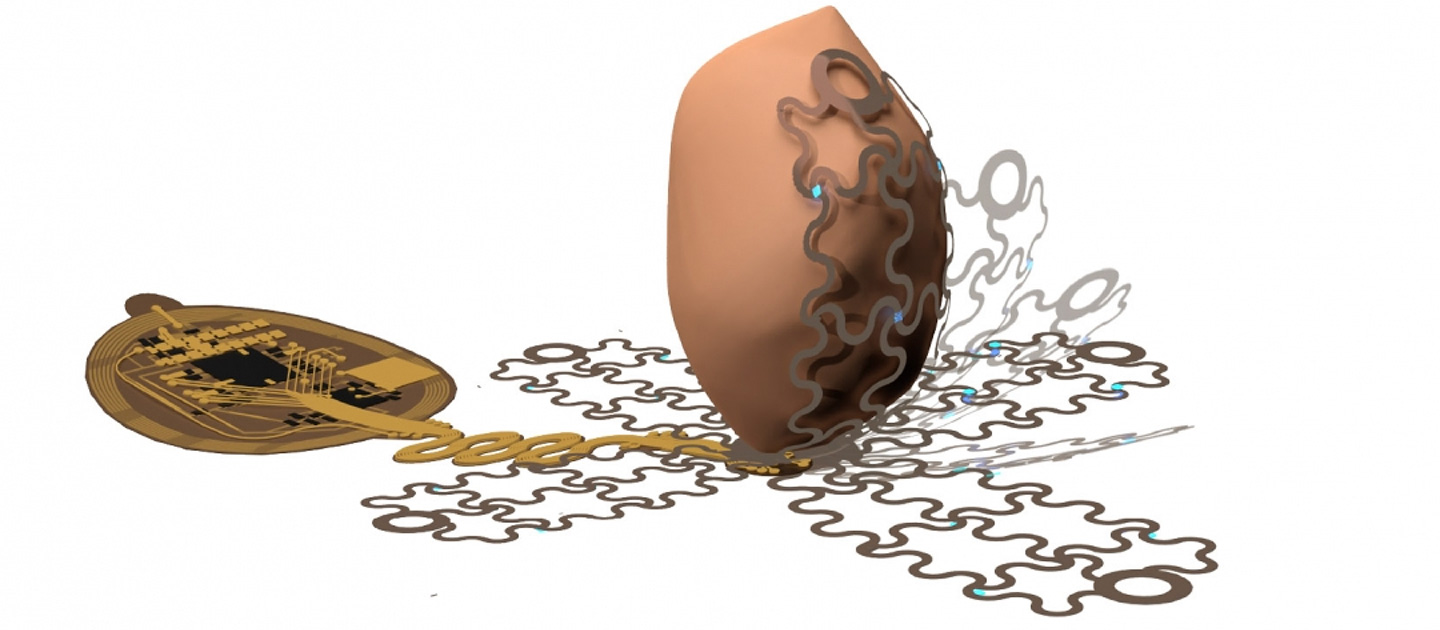

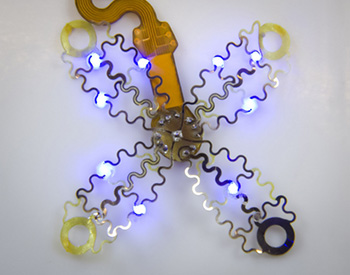

The new pacemaker model consists of four petallike structures made of thin, flexible film, which contain light sources and a recording electrode. The petals, specially designed to accommodate the way the heart changes shape as it beats, fold up around the sides of the organ to envelop it, like a flower closing up at night.

"Current pacemakers record basically a simple threshold, and they will tell you, 'This is going into arrhythmia, now shock!'" Gutruf said. "But this device has a computer on board where you can input different algorithms that allow you to pace in a more sophisticated way. It's made for research."

Because the system uses light to affect the heart, rather than electrical signals, the device can continue recording information even when the pacemaker needs to defibrillate. In current pacemakers, the electrical signal from the defibrillation can interfere with recording capabilities, leaving physicians with an incomplete picture of cardiac episodes. Additionally, the device does not require a battery, which could save pacemaker patients from needing to replace the battery in their device every five to seven years, as is currently the norm.

Gutruf's team collaborated with researchers at Northwestern University on the project. While the current version of the device has been successfully demonstrated in animal models, the researchers look forward to furthering their work, which could improve the quality of life for millions of people.
